Microarray Wafer Scanner

(HC-WS01)(R)

HC-WS01(R)

Whole Wafer Scan——High Throughput Platform

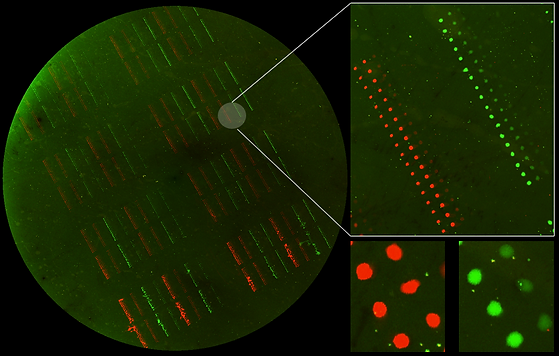

Whole Wafer Image Capturing

  • Image resolution: 20000 x 20000 (~1.6GB), 10um/pixel

  • Image format: TIFF



Whole Wafer Image Analyzing

  • Auto-alignment and Auto-circling


  • Resolution: 2, 5, 10, 40 μm

  • Laser excitation wavelength: 532 nm and 635 nm

  • Laser power:

  • 532 nm: 12 mW

  • 635 nm: 12 mW

  • Compatible Fluorophores: Cy3 & Cy5

  • Wafer size: 4”~12” Si/Glass Wafer

  • Scan area: whole wafer

  • Loader capacity: 1 wafer

  • Detection type: Dynamic focus with real-time confocal and 2 analog photomultipliers (PMTs)

  • Scan speed: 21 mins @10 mm resolution

  • Sensitivity: 0.1 fluoro/μm²

  • Dynamic range: 10⁴

  • Digital resolution: 16 bits

  • File format: TIFF

  • Operation software (BioScan control & BioImage Analyzer)
